Digitization of construction vehicles, including: excavators, pile drivers, tower cranes, road rollers, mining trucks, etc. Through the control operation system centered on the on-board computer, the efficiency is improved and the operation safety is increased. The on-board computer is generally used as the center of the vehicle operating system.
Access various sensors, and transmit operation-related information to the background center or collaborate and share with surrounding operation vehicles to comprehensively improve operation efficiency. For example, in the pile driver system, the on-board vehicle mount terminal needs to be connected to a high-precision positioning module to meet the target scenario of automatic positioning operations. During the transportation of mining vehicles, it is necessary to connect the handheld walkie-talkie through the on-board computer like rugged tablet PC ODM type to meet the voice calls between the fleet and the background in the background of loud noise. In scenarios that are particularly important to safety, such as tower cranes, multiple cameras need to be connected to monitor the working conditions.
Waterproof and dustproof grade above IP65
Support hand-held intercom to meet the needs of fleet scheduling management

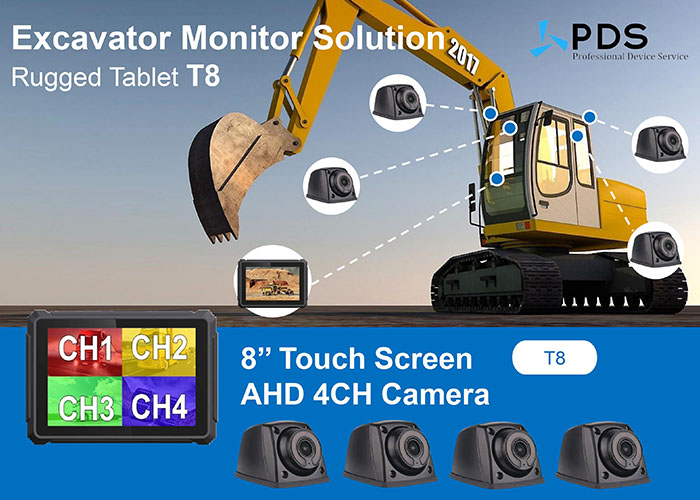

Support multi-channel CAMERA monitoring
Support 4G private network
Support built-in high-precision positioning module to meet centimeter-level positioning and navigation requirements
Compatible with vehicle-grade power supplies to meet various vehicle surge conditions
IP65 waterproof and dustproof grade vehicle mount computer, suitable for use in harsh environments
8-inch high-definition display 1280*800, visible in sunlight
Support hand-held intercom to meet the needs of fleet scheduling management
Can support 2 analog HD camera monitoring at the same time
Support Ethernet function
Support CAN, RS232, RS485 and other bus functions
Support 4G public network, private network communication, and support 5G communication in the future
Support built-in high-precision positioning module to meet centimeter-level positioning and navigation requirements
Vehicle-grade master control, 64-bit processor, passed AEC-Q100 test
ISO7637-2 automotive power supply standard
