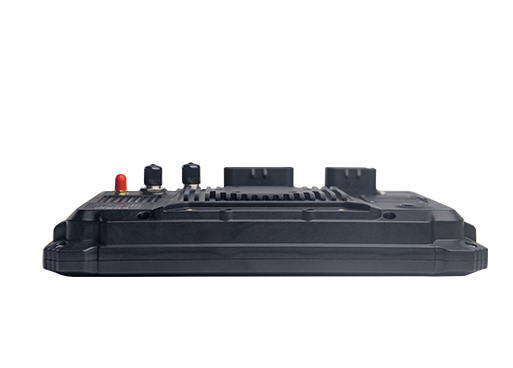

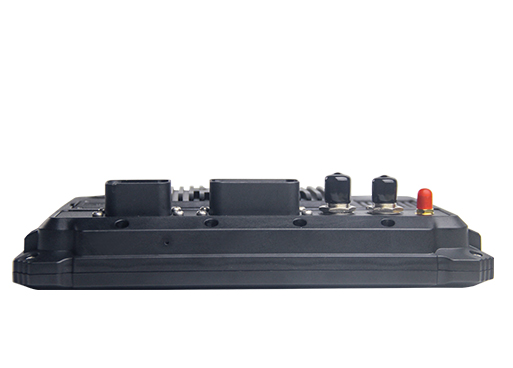

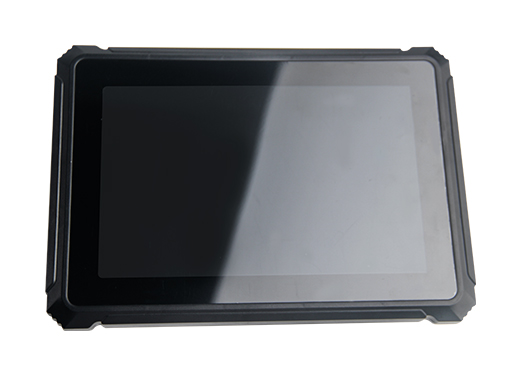

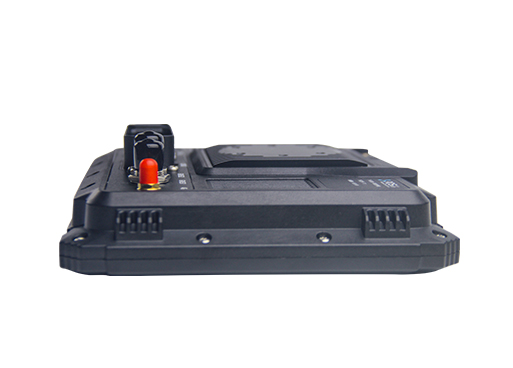

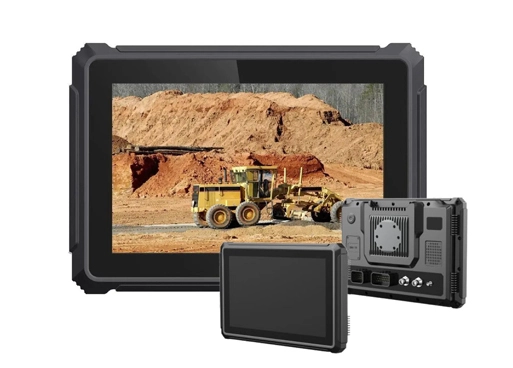

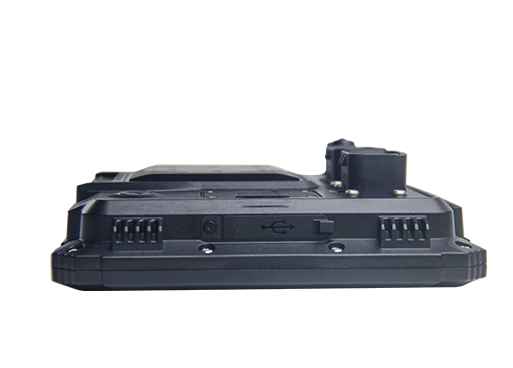

T8 vehicle mount computer is a sturdy and durable in-vehicle computer, which is suitable for various vehicles to work in complex and harsh environments. It is suitable for commercial vehicles such as farm vehicle tracking tractors, excavators, loading and transport trucks, engineering tower cranes, self-driving mining trucks, large trucks, buses, and taxi-hailing vehicles.
It supports car-grade 64-bit processor, ANDROID operating system, and has an IP65 waterproof and dust proof rating. At the same time, support the optional built-in centi-meter-level positioning module, the T8 vehicle mount computers can meet the automatic or semi-automatic driving needs of agricultural, engineering and mining vehicles.
Car chip 64-bit processor, 4-core Cortex A53@1.5GHZ, passed AEC-Q100 test
Support ANDROID 10 or LINUX+QT5 system
Support RTK high-precision centi-meter-level positioning function
Max to support 4-channel 720P cameras can be previewed at the same time
Max to support 2 CAN networks, and the CAN rate can support 500kbps/250kbps
This OEM mobile data terminal supports Ethernet function and external handheld public network intercom function to meet the needs of fleet networking operations
Support 9-36V power input, support ISO7637 vehicle power supply standard,
IP65 protection grade to meet the needs of complex and harsh working environment
Product surface | |
IP rating | IP65 |
Screen and touch | Full lamination process, multi-touch |
Size | 275mm*200mm*47.5mm |
System | |
CPU | Car chip 64-bit processor, 4-core Cortex A53@1.5GHZ |
Memory | 2GB (*optional 4GB) |
Storage | 16GB (*optional 256GB) |
Operation system | Android 10.0 (* optional LINUX+QT) |
Wireless communication | |
WIFI | 2.4G WiFi, IEEE802.11 b/g/n |
BT | BT4.0 BLE |
GNSS | GPS+BD module (* optional) |
4G LTE | Module: Quectel EC200U CAT1 （for European countries） LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8 |
High precision positioning | (*optional support RTK module UM482 or UB482) |
Port | |

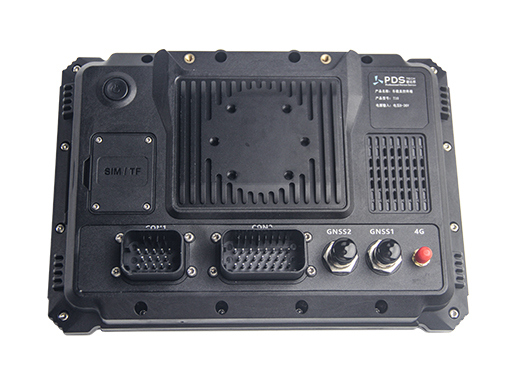

Port | Power button *1 USBC port * 1 (for software debugging） USB Host A port *1 TF Card *1 Nano SIMCard *1 TNC antenna port *2 (For external high-precision GNSS positioning antenna） SMA antenna port*1 (For external LTE communication antenna) 14PIN connector*1 (*Function extension interface） 23PIN connector*1 (*Function extension interface） |
*Function extension interface | Various function combinations are available(Using 14PIN+23PIN to meet the function requirement） Default function: 4*CAMERA+2*CAN+2*RS232+1*100M Ethernet Combo 2 function: 1*CAN+3*RS232 Combo 3 function: 4*CAMERA+2*CAN+2*RS232+1*USB |
Environment specification | |
Environment specification | Power: ISO7637 Vibration standard (working): MIL-STD-810 Impact standard (working): ISO16750 Humidity 95%, non-condensing Working temperature: -20°C ～+70°C |
