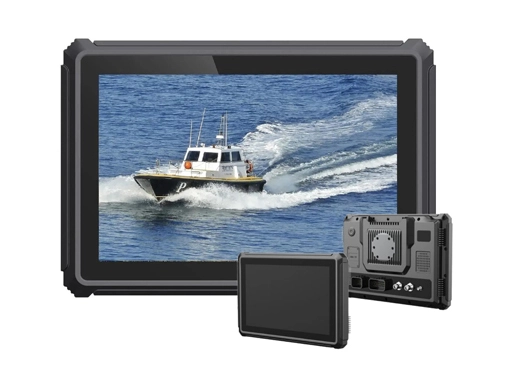

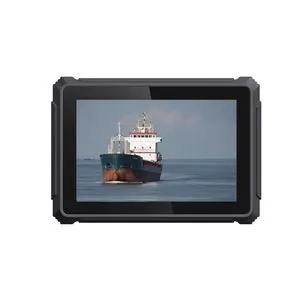

T103 Boat Mount Computer

T103 Boat Mount Computer

T103 is a 10.1-inch IP65 on-board computer. It supports CAN bus and RS232. At the same time, each interface is treated with anti-salt spray according to the marine application environment, which is suitable for various marine applications.

  • T103 Boat Mount Computer

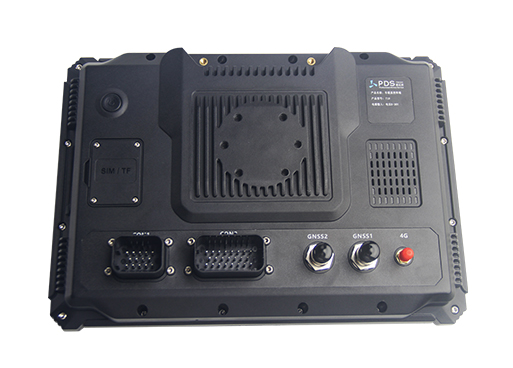

  • vehicle mount computer1

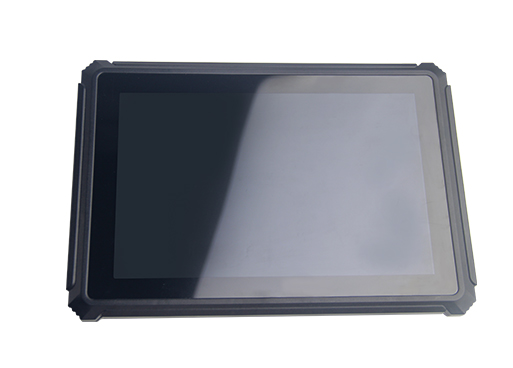

  • vehicle mount computer2

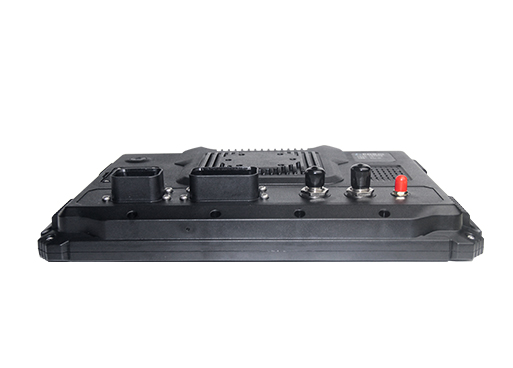

  • vehicle mount computer5

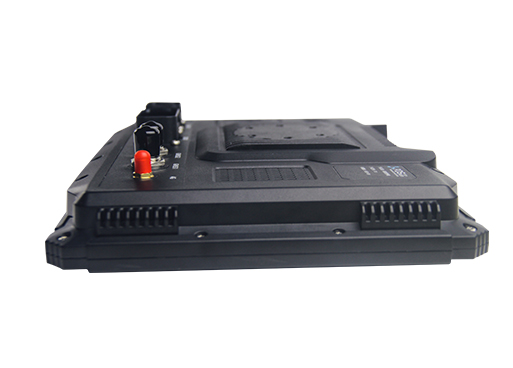

  • vehicle mount computer3

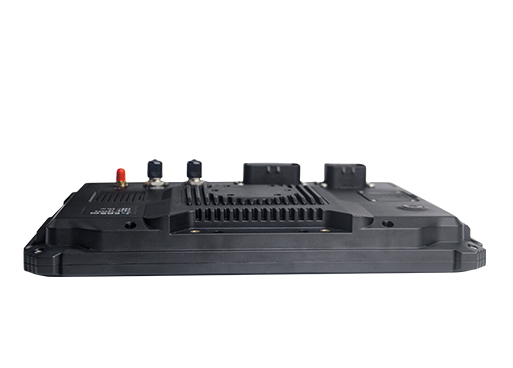

  • vehicle mount computer6

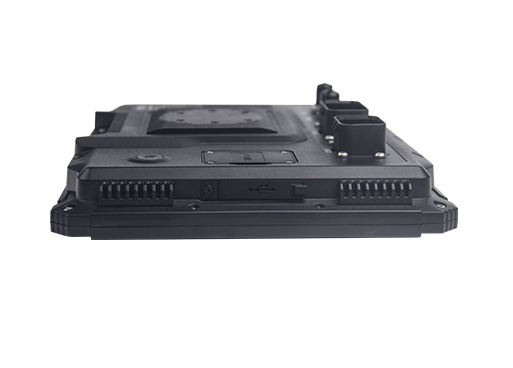

  • vehicle mount computer4
  • T103 Boat Mount Computer
  • vehicle mount computer1
  • vehicle mount computer2
  • vehicle mount computer5
  • vehicle mount computer3
  • vehicle mount computer6
  • vehicle mount computer4

Highlights of T103 Boat Mount Computer


  • IP65 protection grade Standard RAM bracket installation, vehicle mounted devices suitable for horizontal or vertical installation

  • Support RTK centimeter-level positioning function

  • Support CAN & RS232

  • Up to 4-channel 720P cameras

  • Automotive-grade 64-bit processor, 4-core A53@1.5GHZ, processor passed AEC-Q100;

  • This OEM mobile data terminal support ANDROID 10 or LINUX+QT5 system

  • 10.1-inch use 1280*800 resolution IPS screen, 10.1-inch brightness is greater than 500CD/M2;

  • ISO7637-2 power standard

Specification of T103 Boat Mount Computer


Product appearance

IP rating

IP65

Screen and touch

Full lamination process, multi-touch
10.1",1280*800, brightness>=500 CD/M2
IPS screen,The viewing angle is greater than 170 degrees

System

CPU

Car chip 64-bit processor, 4-core Cortex A53@1.5GHZ

Memory

2GB

Storage

16GB

Operation system

Android 10 or LINUX+QT

Wireless communication

WIFI

2.4G WiFi, IEEE802.11 b/g/n

BT

BT4.0 BLE

4G LTE

optional

Port





Port

Power button *1

USBC port * 1  (for software debugging)

USB Host A port *1

TF Card *1

23PIN connector*1 (*Function extension interface: support 4 * 720P cameras   and CAN bus)

Environment specification

Environment specification

Power :ISO7637

Vibration standard(working): MIL-STD-810

Impact standard(working): ISO16750

Humidity 95%, non-condensing

Working temperature: -20°C ~+70°C
