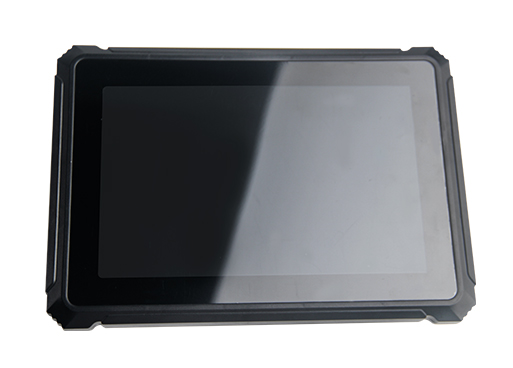

T801 is a Android 8inch IP65 rugged tablet. It can highly meet the application requirements of agriculture tractor autonomous driving. Its mobile data terminal and heat dissipation solution adopt seismic design to meet all the requirements of agriculture fleet tracking tractors. You can obtain accurate data through mobile data terminals.
IP 65 rating with rugged mechanical design suitable for heavy vehicle and fleet trucks
T801 vehicle mount computers provide industrial-grade computing platform solutions and comprehensive data processing capabilities for warehouse management, mining management and port management.
About this OEM mobile data terminal, the strong shell without ventilation holes ensures that the front and rear panels can effectively prevent the ingress of dust and moisture.
Product Appearance | |
IP rating | IP65 |
Screen and touch | Full lamination process, multi-touch |
System | |
CPU | 64-bit processor, 4-core Cortex A53@1.5GHZ |
Memory | 2GB |
Storage | 16GB |
Operation system | Android 10 |
Wireless communication | |
WIFI | 2.4G WiFi, IEEE802.11 b/g/n |
BT | BT4.0 BLE |
4G LTE | Module: Quectel EC200U CAT1 （for European countries) LTE-TDD: B38/B40/B41 GSM: B2/B3/B5/B8 |
High precision positioning | support RTK module: Unicore UM482/UM980 or U-blox F9p |
Port | |

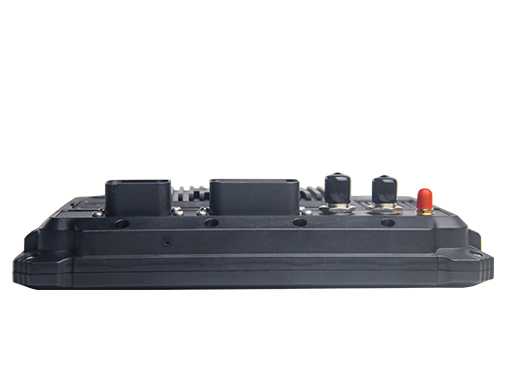

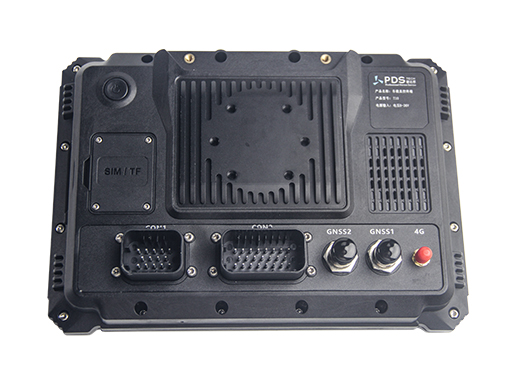

Port | Power button *1 USBC port * 1 (for software debugging） USB Host A port *1 TF Card *1 Nano SIMCard *1 TNC antenna port *2 (For external high-precision GNSS positioning antenna） SMA antenna port*1 (For external LTE communication antenna) 14PIN connector*1 (*Function extension interface） 23PIN connector*1 (*Function extension interface） |
Environment specification | |
Environment specification | Power: ISO7637 Vibration standard (working): MIL-STD-810 Impact standard (working): ISO16750 Humidity 95%, non-condensing Working temperature: -20°C ～+70°C |
