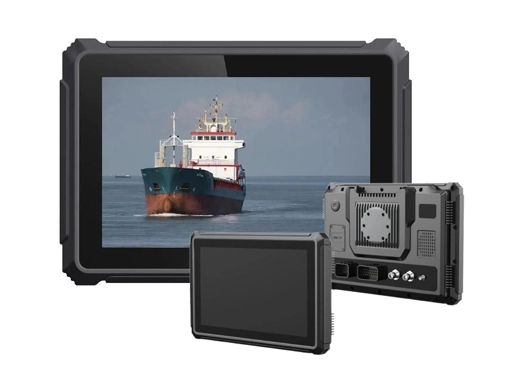

T803 running T507 platform, supports Android 10 or Linux operation system. 8 inch touch screen Support WLAN/LTE/Bluetooth, support seamless WiFi roaming. Rugged vehicle-mounted terminal specially designed to improve industrial vehicles or Boat working efficiency.
This OEM mobile data terminal is equipped with impact-resistant and wear-resistant multi-touch capacitive screen, and excellent WIFI roaming. Built for extreme industrial environments.
T803 vehicle mounted PC has built in light sensor which could adjust brightness automatically according to different strength of sunlight.
PDS, a professional mobile data terminal manufacturer, also provides customized services to meet customers' diverse automotive computer integration needs.
Product appearance | |
IP rating | IP65 |
Screen and touch | Full lamination process, multi-touch |
System | |
CPU | Car chip 64-bit processor, 4-core Cortex A53@1.5GHZ |
Memory | 2GB |
Storage | 16GB |
Operation system | Android 10 or LINUX+QT |
Wireless communication | |
WIFI | 2.4G WiFi, IEEE802.11 b/g/n |
BT | BT4.0 BLE |
4G LTE | optional |
Port | |
Port | Power button *1 USBC port * 1 (for software debugging） USB Host A port *1 TF Card *1 23PIN connector*1 (*Function extension interface: support 4 * 720P cameras and CAN bus） |
Environment specification | |
Environment specification | Power: ISO7637 Vibration standard（working）: MIL-STD-810 Impact standard（working）: ISO16750 Humidity 95%, non-condensing Working temperature: -20°C ～+70°C |
